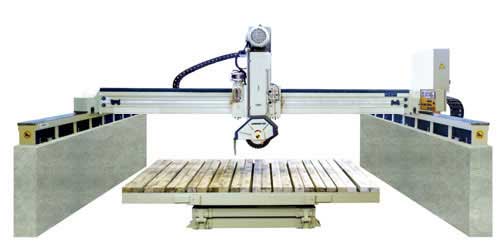

Bridge Cutting Machine

This machine is for cutting slabs. Microcomputer controlled. Cutting dimensions set by terminal input. The machine is equipped with a laser illumination system which makes the disc adjustment easier 。The cut and return is controlled by a finely adjustable inverter. The control is at the top as far as its reliability and its performances are concerned. There are type 400 and 600,fixed blade and tilting blade in choice.

Max working dimensions(L×W×H) mm 3200×3200×80
Max. diameter of blade mm 400
Table dimensions(L×W) mm 3200×2000
Table tilting degree n° 0-85
Table rotating degreee n° 90
Main motor power kW 15
Water consumption m3/h 4
Overall dimensions(L×W×H) mm 6000×5000×2600



Bridge cutting machine equipped with 360-degree rotary table adopts wide-span bridge type structure. Horizontal stone slicing can be achieved by moving the girder. The maximum blade vertical stroke can be up to 3.6M with flexibility in rotation, revise in positioning, and stability in operation. This bridge cutting machine is used for cutting stone slabs, controlled by microcomputer with touch-sensitive operating system. The control is at the top as far as its reliability and its performances are concerned. A finely adjustable inverter controls the cut and return. The workingbench can overturn by 85 degree. The bridge saw is equipped with a laser illumination system, which makes the disc adjustment easier. The mainframe of the stone cutting machine adopts imported frequency transducer to achieve stepless adjustment of cutting speed. Cutting dimensions set by terminal input. Adopting monoblock crossbeam automatic moving technique, equipped with high-quality imported electric components and high-precision accessories, the stone cutting machine has a great improvement on working precision and stability. There are type 400 and 600,fixed blade and tilting blade in choice. Simple operation, high precision cutting, perform stability, the bridge cutting machine is particularly suited to high-value and large stone slates.
