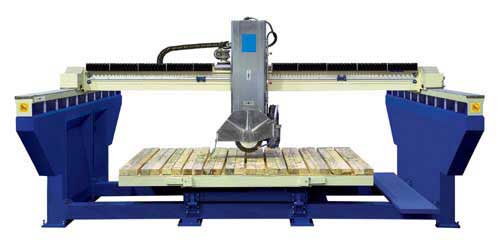

granite bridge cutting machine

This machine is PLC controlled with cutting dimensions set by terminal input. All operation are executed either manually by the operator or automatically by the program carrying out parallel cuts with max 8 different dimensions repeatable up to 1999 times. The switchboard, with operation buttons, programmer and liquid crystal display on it, is mounted on the right hand side of the machine. The switchboard make operator easily to control the machine from the sawing area when the stone is being positioned. The saw is equipped with a laser illumination system to aid in lining up the cut. The most important is the blade holder of machine can be tilting from 0 to 45 degree for chamfering cutting. So the machine can be satisfy for different special processing request.  The cut is controlled through an inverter.



The bridge saw machine may cut granite, marble and other non-metallic material. Microcomputers control, simple operation, high precision cutting, performs stability; it is particularly suited to high-value and large stone slates. The workingbench can overturn by 85 degree. Granite bridge cutting machine or marble cutting machine adopts a fully automatic machine as a whole using large beams displacement positioning, knife blocks move back and forth and tool carrier up and down. The switchboard on the granite bridge cutting machine, with operation buttons, programmer and liquid crystal display on it, is mounted on the right hand side of the machine. The switchboard make operator easily to control the machine from the sawing area when the stone is being positioned. To complete parallel plate cutting once, the main parts and components of granite bridge cutting machine (such as frequency converter, magnetic rule and laser reticure apparatus) are all of imported good quality materials. With integrated structure, the bridge saw machine features high strength, deformation resistance and long service life. It is easy to transport and free of experiment and adjustment. With rotatable cutting head, the granite bridge cutting machine has the merits of high speed, high precision and easy maintenance, which is preferred equipment for cutting high-value large-size slabs.
