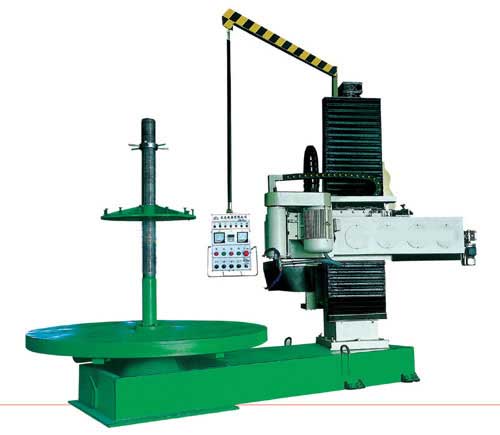

Gyroidal Stone Cutting Machine

This machine is for cutting stylobate,column,pyramid column,baluster and ball,etc.controlled by microcomputer,it works by automatic tracking according to the sectional view.

Max. cutting diameter mm 2500
Max. cutting height mm 1000
Worktable diameter mm 2000
Blade diameter mm 600
Main motor power kW 11
Water consumption m3/h 4
Overall dimensions(L×W×H) mm 4500×2500×3500
Approximate weight kg 6000




Yuxiang is a specialized manufacturer & exporter of Stone cutting machine, such as Gyroidal Stone Cutting Machine, stylobate, pyramid column, marble baluster, marble ball, granite column, laser cutting machine, die cutting machine, water jet cutting machine, granite cutting machine, shape cutting machine, marble cutting machine.

Gyroidal Stone Cutting Machine is electrical centralized switchboard grouping all functions and supervisions of the machine. The switchboard on the Machine, with operation buttons, programmer and liquid crystal display on it, is mounted on suspender in middle of the machine. The switchboard make operator easily to control the Gyroidal Stone Cutting Machine from the sawing area when the stone is being positioned.

With microcomputer control system and optical fiber measuring and monitoring system, the Gyroidal Stone Cutting Machine is applicable for cutting various revolution bodies including stylobate, pyramid column, baluster and ball, column seats, column caps and columns, etc. Gyroidal Stone Machine works by automatic tracking according to the sectional view, and overcomes the problems such as high material consumption and low precision in manual processing. With frequency control, when the Gyroidal Stone Cutting Machine processing stylobate and pyramid column, the machine features stable working, easy operation, high processing quality and high efficiency and has less risks of damage.
