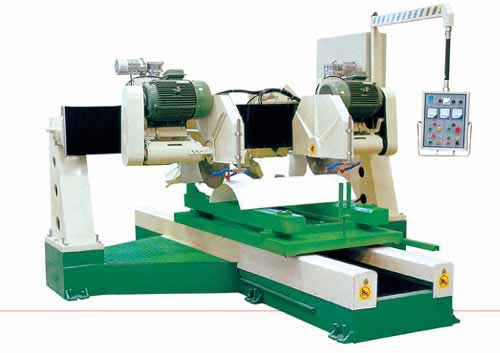

Edge Cutting Machine For Arc Slate

This machine is for edge cutting of column slabs.It also used in cutting mushroom stone and dimensioned slab.Reasonable design makes it good precise and high working efficiency

Max. cutting length mm 1500
Max. cutting width mm 1500
Cutting angle 0-180
Vertical-cut thickness mm 180
Main motor power kW 5.5
Water consumption m3/h 4
Overall dimensions(L×W×H) mm 5000×3400×2300
Approximate weight kg 5000




Yuxiang is a specialized manufacturer & exporter of Stone cutting machine, such as edge cutting machine for arc slate, column slabs, mushroom stone, dimensioned slab, stone cutting machine, laser cutting machine, edge slitting machine, gantry cutting machine, marble cutting machines

This machine is applicable for edge trimming of arc slate and edge cutting of column slabs. The edge cutting machine for arc slate also used in cutting mushroom stone and dimensioned slab. With dual saws, the cutting is fast, accurate, highly efficient and stable. The switchboard on the edge cutting machine for arc slate, with operation buttons, programmer and liquid crystal display on it, is mounted on the right hand side suspender of the machine. The switchboard make operator easily to control the machine from the cutting area when the column slabs or mushroom stone is being positioned. Reasonable design makes it good precise and high working efficiency. Except onvenient and efficient in operation, edge cutting machine for arc slate is also helpful for environmental protection and energy saving, and beneficial to comfortable and safe operations.

With the features of intelligent control, convenient operation, high precision, high efficiency and stable performance, the edge cutting machine for arc slate is your best choice to grind and polish high-value arc slates. Blade diameter: 500mm.Max. cutting length: 1,500mm.Max. cutting width: 1,200mm.Max. cutting thickness: 300mm.Overall dimension: 4,500 x 3,500 x 2,400mm .
