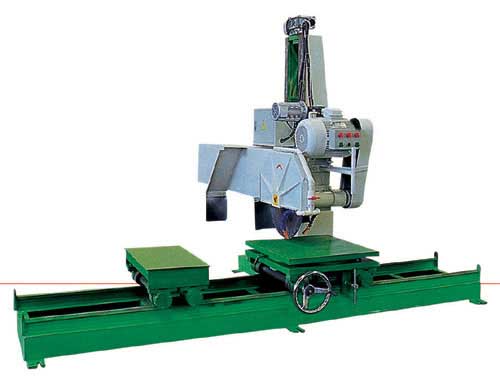

manual drawcut machine

This machine is for cutting craft stone.
　Max vertiacal stroke:800mm/Maxo cutting width:1000mm
　Total power:12kW/Water consumption:2m3/h



Yuxiang is a specialized manufacturer & exporter of manual drawcut machine, cutting craft stone, stone cutting equipment, gem stone cutting, granite cutting equipment, cutting granite counter tops, stone cutting tool, stone cutting saw, stone cutting machine, cutting marble.

Manual drawcut machine is a good quality stone cutting equipment and is agile and convenient to cutting craft stone, which equipped with a small slide board so as to feed materials slantwise and achieve a big chamfering with 150mm in width. The table has the sealed oil filled guide, driven by the rack and pinion moved by the handwheel, the blade spindle can rotates manually; Cutting craft stone adopts jointed structure, with trolley driven by hand. Manual drawcut machine is the unique equipment for accurate dimension and specification, including straight and smooth edge with flexible movement of blade. With combination structure, rotatable cutting head, the cutting head of main drive in Manual drawcut machine can rotate 45 degrees, and oil-immersed sealed rails.

The great strength and high efficiency of the Manual drawcut machine makes it possible to cutting craft stone. The Manual Edge Cutting Machine is compact in structure and applicable for edge trimming and chamfering of small slabs, slab bars and thick slabs.
