Home->Machine->Polishing Machine->MANUAL POLISHING MACHINE type YXPM-08

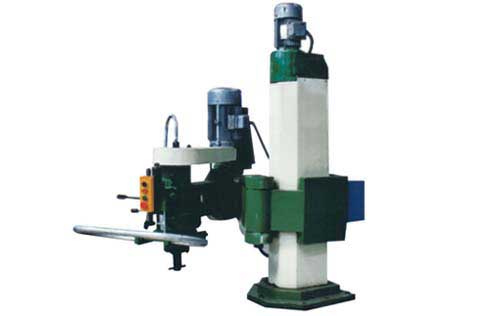

manual polishing machine

This machine is for polishing granite and marble slab.
　Max working length:2000mm/Max working width:1200mm
　Max working thickness:700mm/Polish disc diameter:260mm
　Polish spindle power:4kW/Total power:4.5kW



Yuxiang is a specialized manufacturer and exporter of Stone machine, can supply manual polishing machine, polishing granite, marble slab, granite polishing machine, marble polishing machine, hand polishing machines, italy polishing machine.

Manual polishing machine offered by Yuxiang is mainly application in polishing granite and marble slab with different thickness and sizes. Manual polishing machine is popular in word market; workers with rich experience can do a good job that the items no bad than auto-machine, usually for granite and slate, sometimes use for notch and bevel, and other special function. With spring pressurization and hand-controlled lifting system, the manual polishing machine has features of compact structure, agile gyration, easy operation and maintenance. This polishing machine uses round column as its guide slip surface for steady automatic ups and downs. The polishing heads can work with triangular abrasive and resin abrasive at same time. Elevation for polishing head is controlled by air cylinders, which is matched with slab checking system. It is easy elevated and provides mild polishing effect. The mandrel of polishing head is supported by the plating hard chrome sleeve for preventing bearing additional load. It allows durable in service with antifriction and provides stable rotation for polishing head to obtain optimum polishing surface. Two optional main drive motors (single speed and dual speeds) are upon the clients' choice. All key parts and assemblies of manual polishing machine are hardened and ground to prolong the service life with obvious effect of waterproof and shock-proof, which is suitable for polishing granite and marble slab
