polishing machine for slab



No. of heads n 6
Useful working width mm 600-2000
Useful working thickness mm 15-50
Belt advancement speed mm/min 0-1200
Spindle motor power kW 11
Total power kW 71
Water consumption m3/h 10
Overall dimensions(L×W×H) mm 6470×2700×2650



Yuxiang is specialized supply stone cutting equipment, including polishing machine for slab, 6 polished heads, stone grinding machine, granite slab, marble slab, stone slab, polishing head for granite, automatic polishing machine.

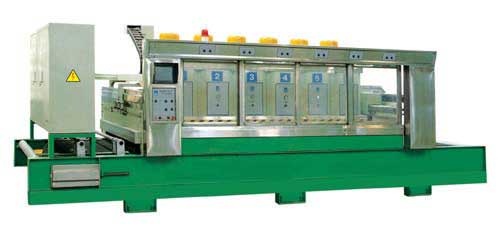

This stone grinding machine with 6 polished heads is a specializing polishing machine for slab. The crossbeam of both-end heads is hold by special secure stand. High wave hardening treats the sliding surface. The friction proof plate for surface polishing is matched with roller bearing. The flooding system lubrication can reduce the friction force. Labyrinth dustproof and waterproof protected cover ensures bearings and slideway away from contamination. Driven by the inverter, the motor movement speed can be properly adjusted to enhance fro-and-to movement speed without vibration, so as to increase the production capacity. Adopting the latest manufacturing technology and processing techniques, keeping existing merits, the polishing machine for slab is made with thoroughly new design. With the features of intelligent control, convenient operation, high precision, high efficiency and stable performance, the stone grinding machine with 6 polished heads is your best choice to grind and polish high-value large-size slabs. The computer software to enable good polishing effect on the stone and polishing surface and increase polishing capacity carefully analyzes the polishing dynamics of polishing machine for slab. All key parts and assemblies are hardened and ground to prolong the service life with obvious effect of waterproof and shock-proof, polishing machine for slab is suitable for polishing granite slab, marble slab, and stone slab.
